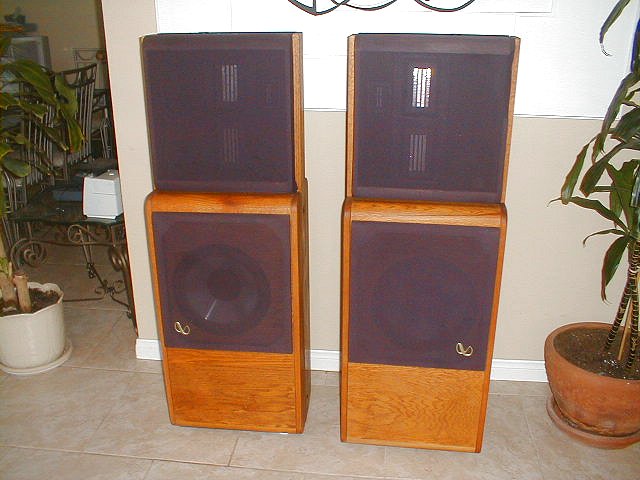

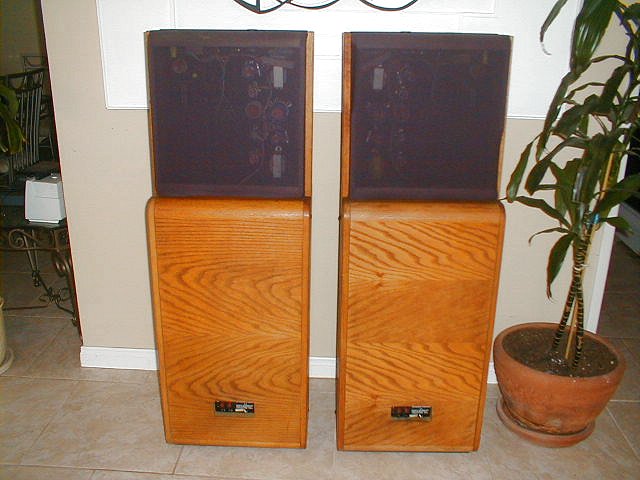

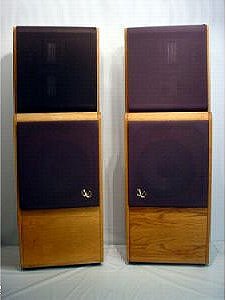

Reference Standard 2.5
Introduced: 1979
Dimensions: 129 x 46 x 28 cm

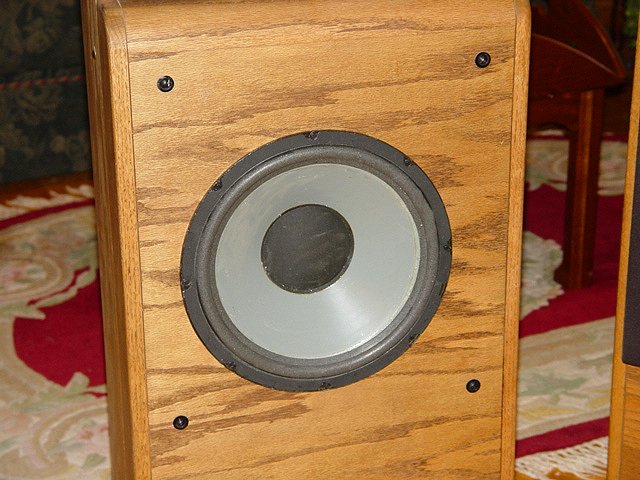

Bass: 1 x 30 cm

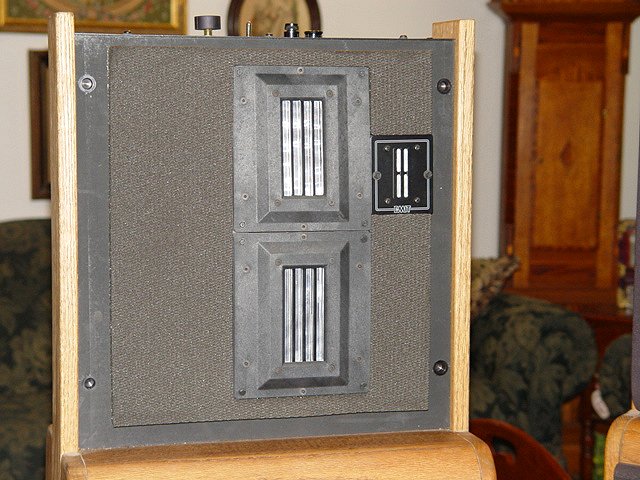

Mids: 2 x EMIM

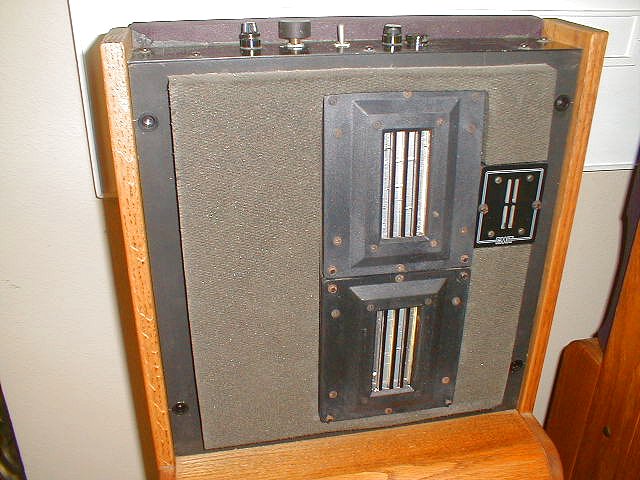

Highs: 2 x EMIT (one on the back)
Suggested for amplifiers with: 100-300 Watts per channel
Frequency range: 30 Hz - 32 kHz
Crossover frequencies: 300 Hz, 5000 Hz
Suggested price (pair): 2300 $
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
For a technical sheet with crossover schematics of the RS 2.5 click here.
View a manual of the external crossover in PDF format here.

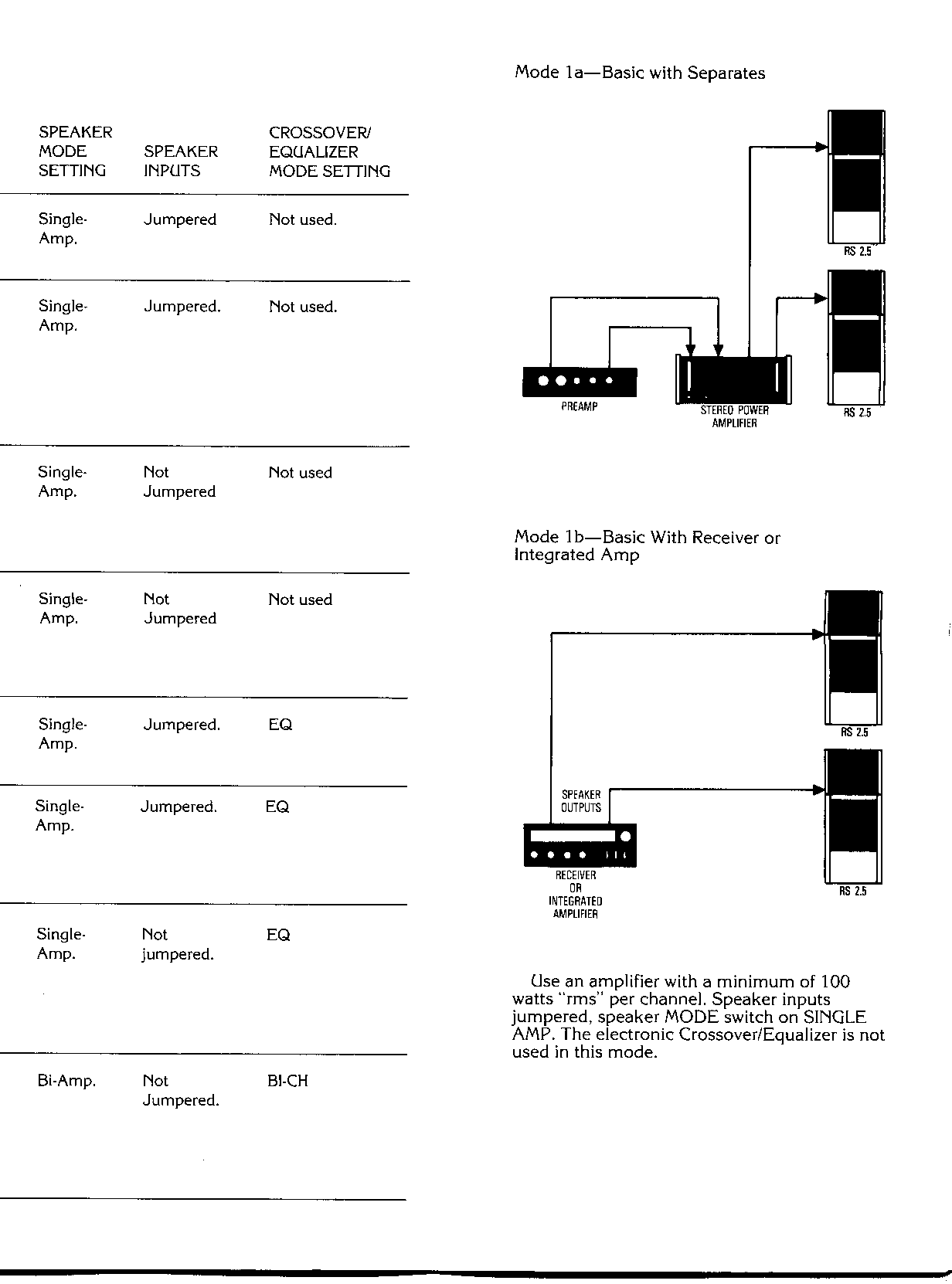

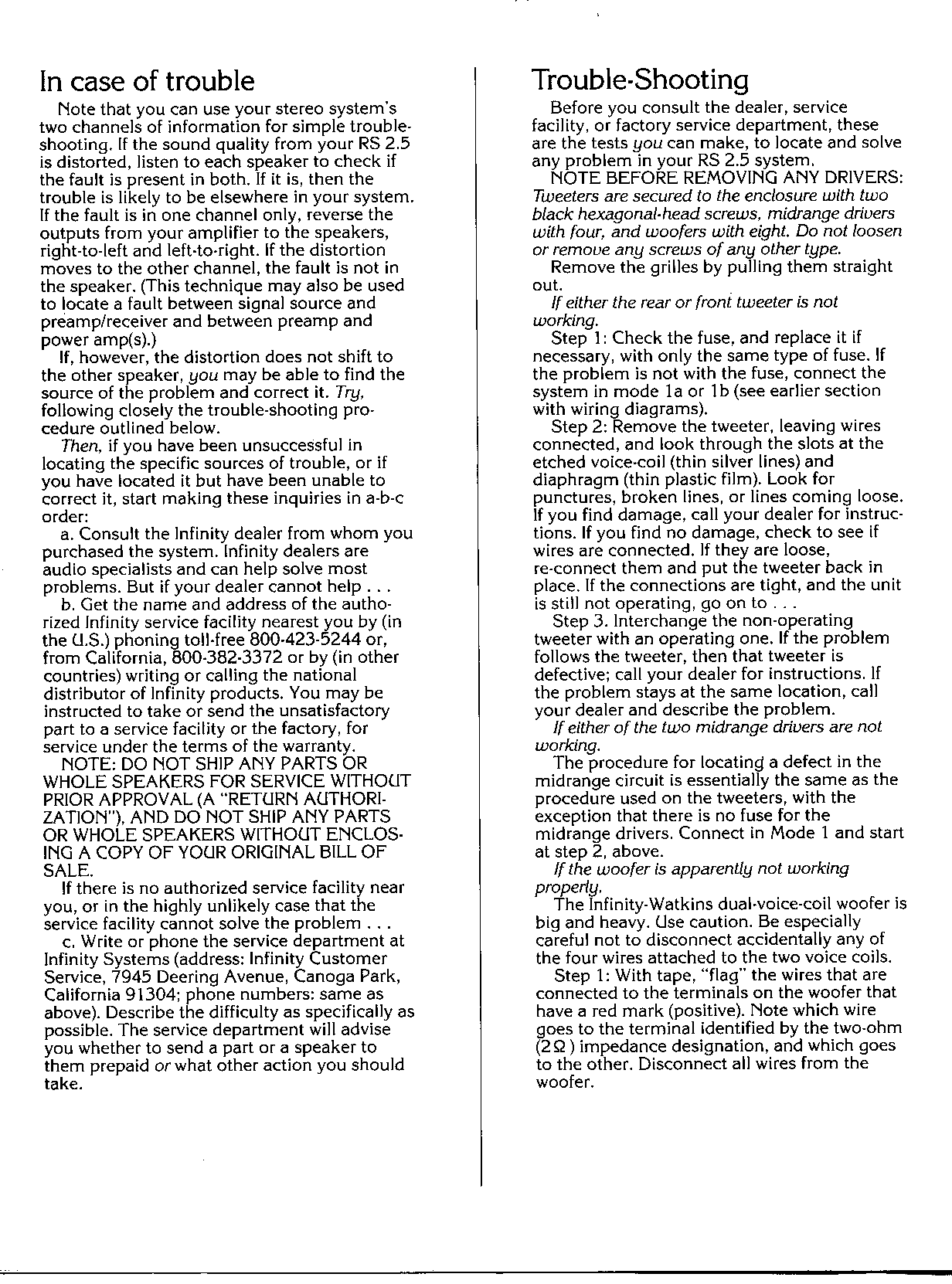

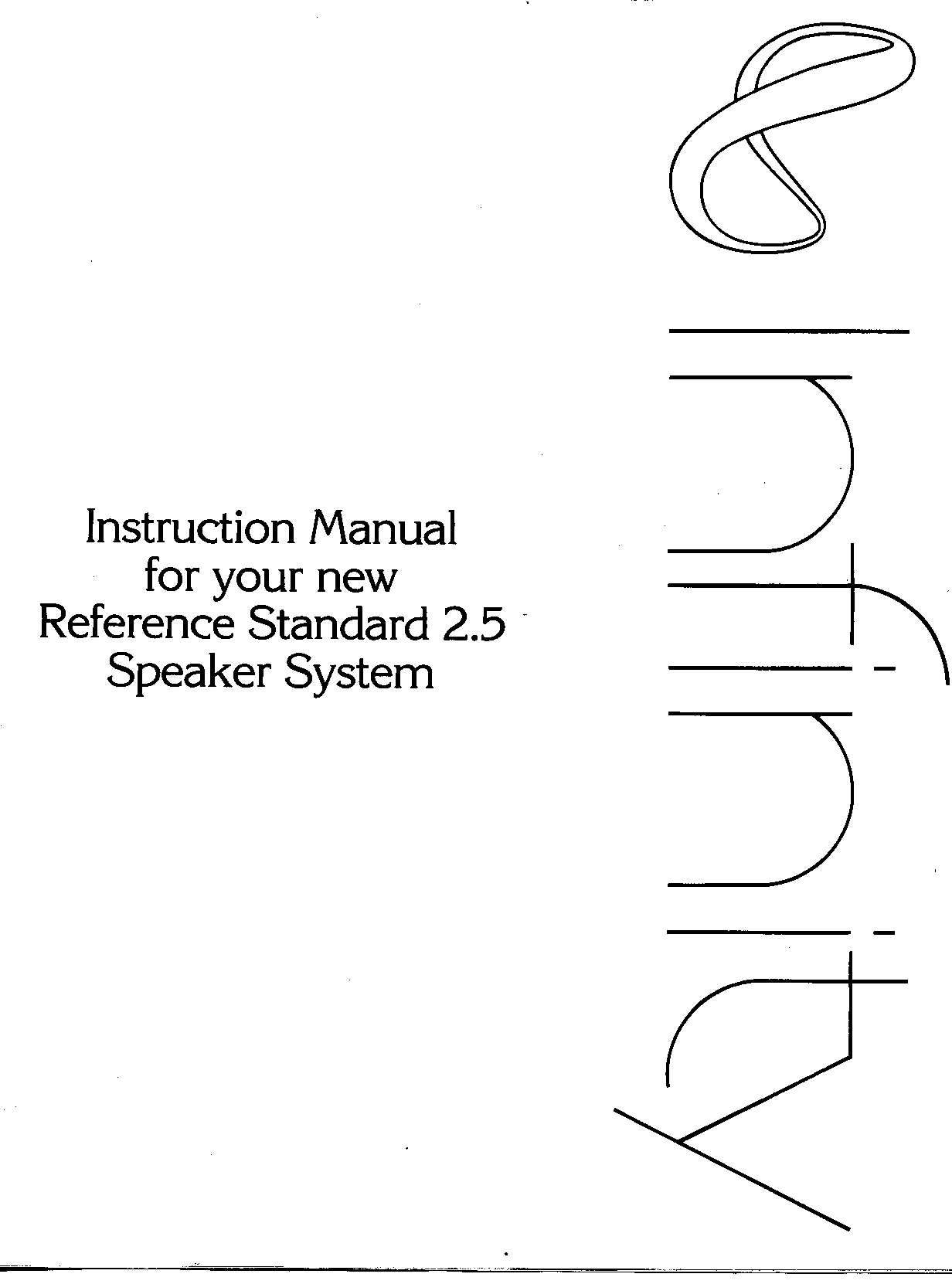

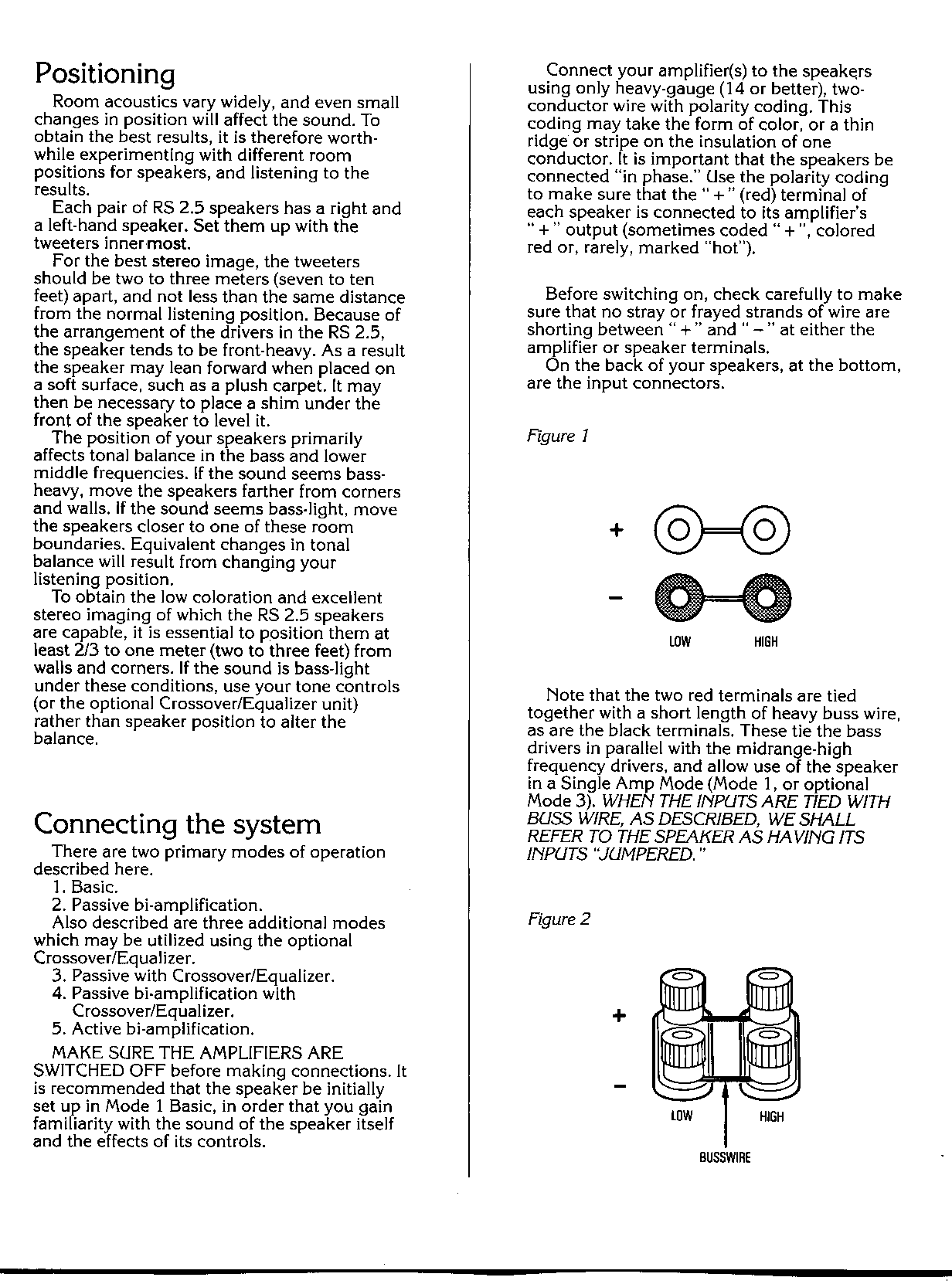

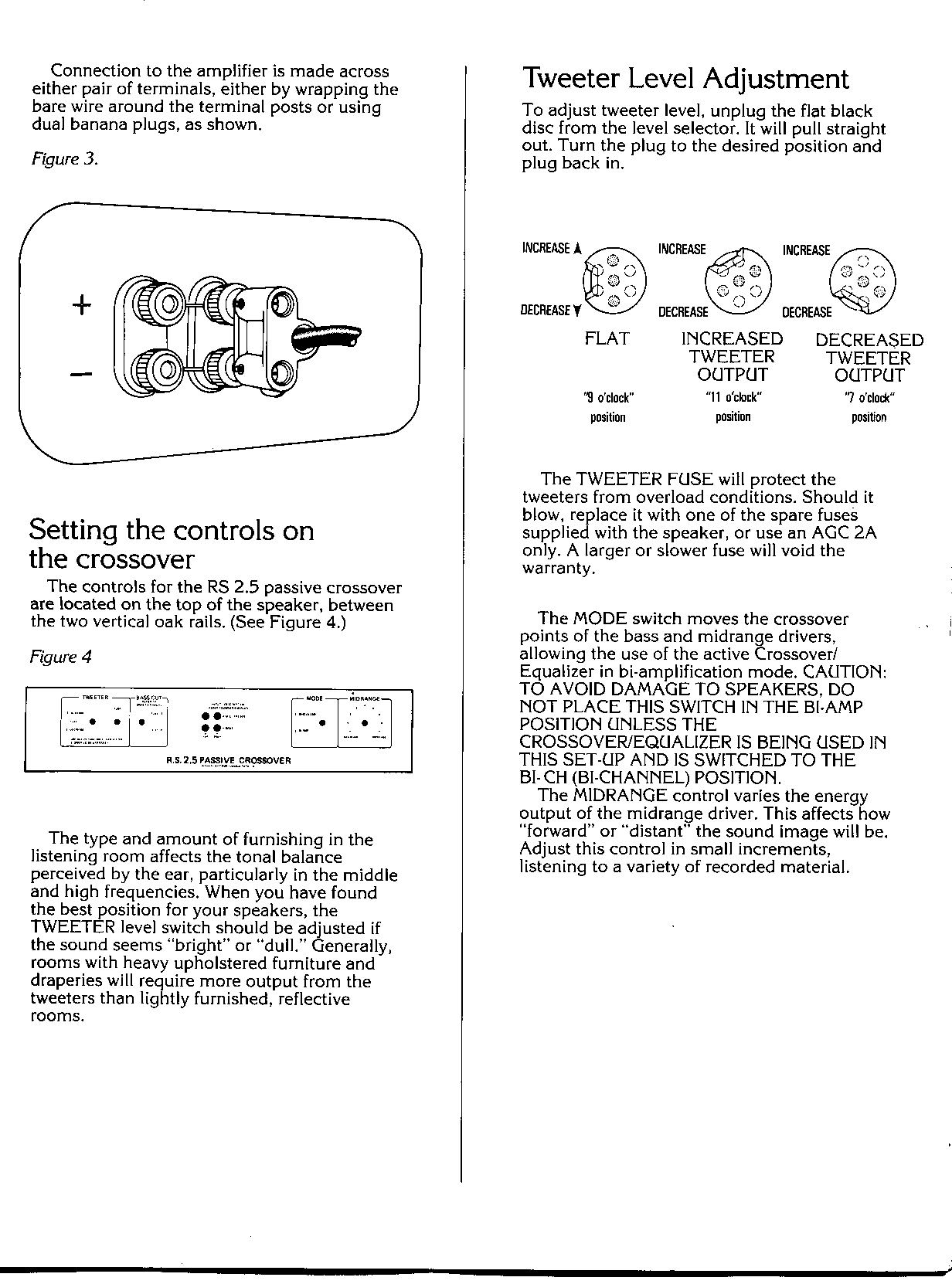

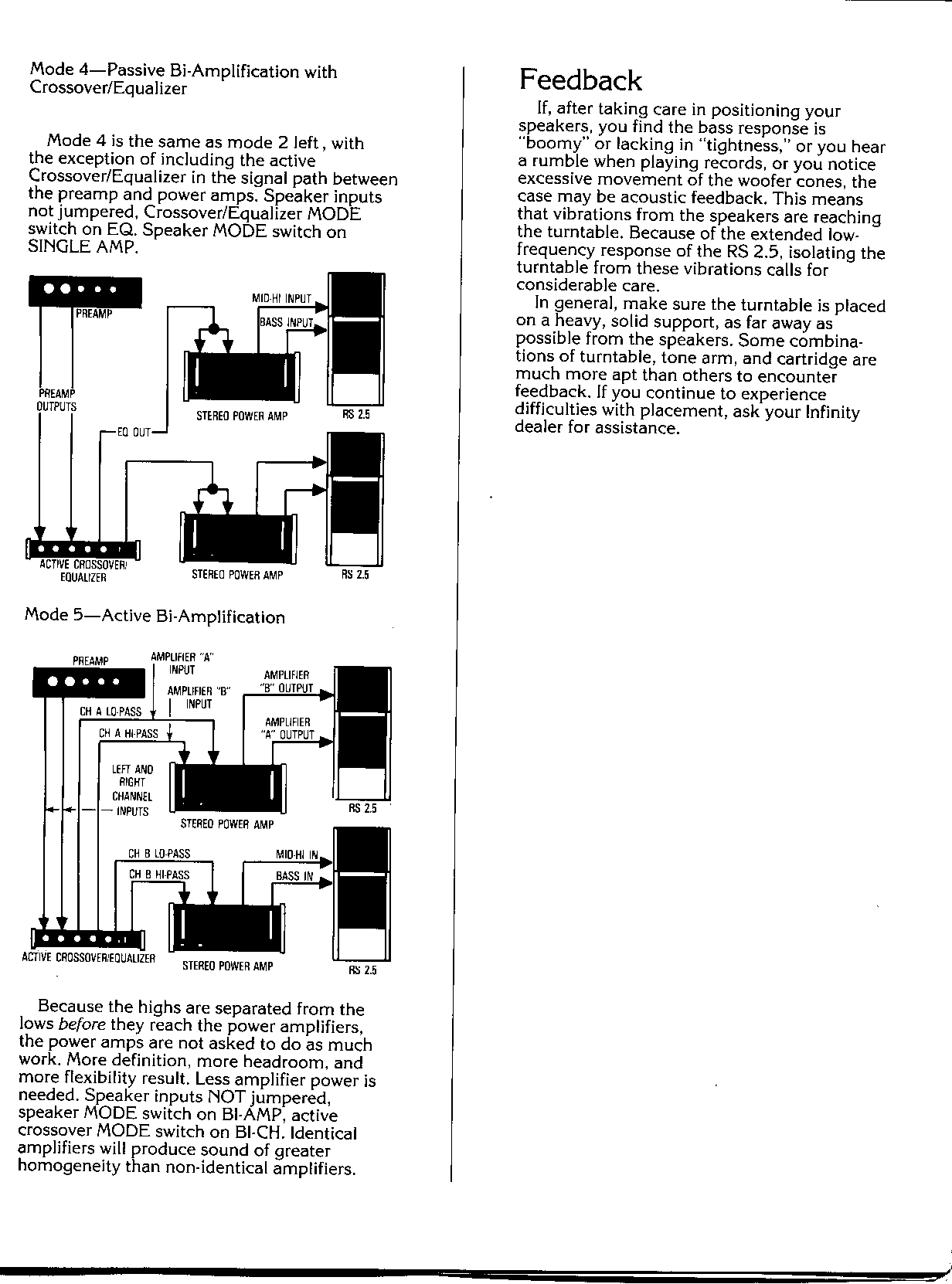

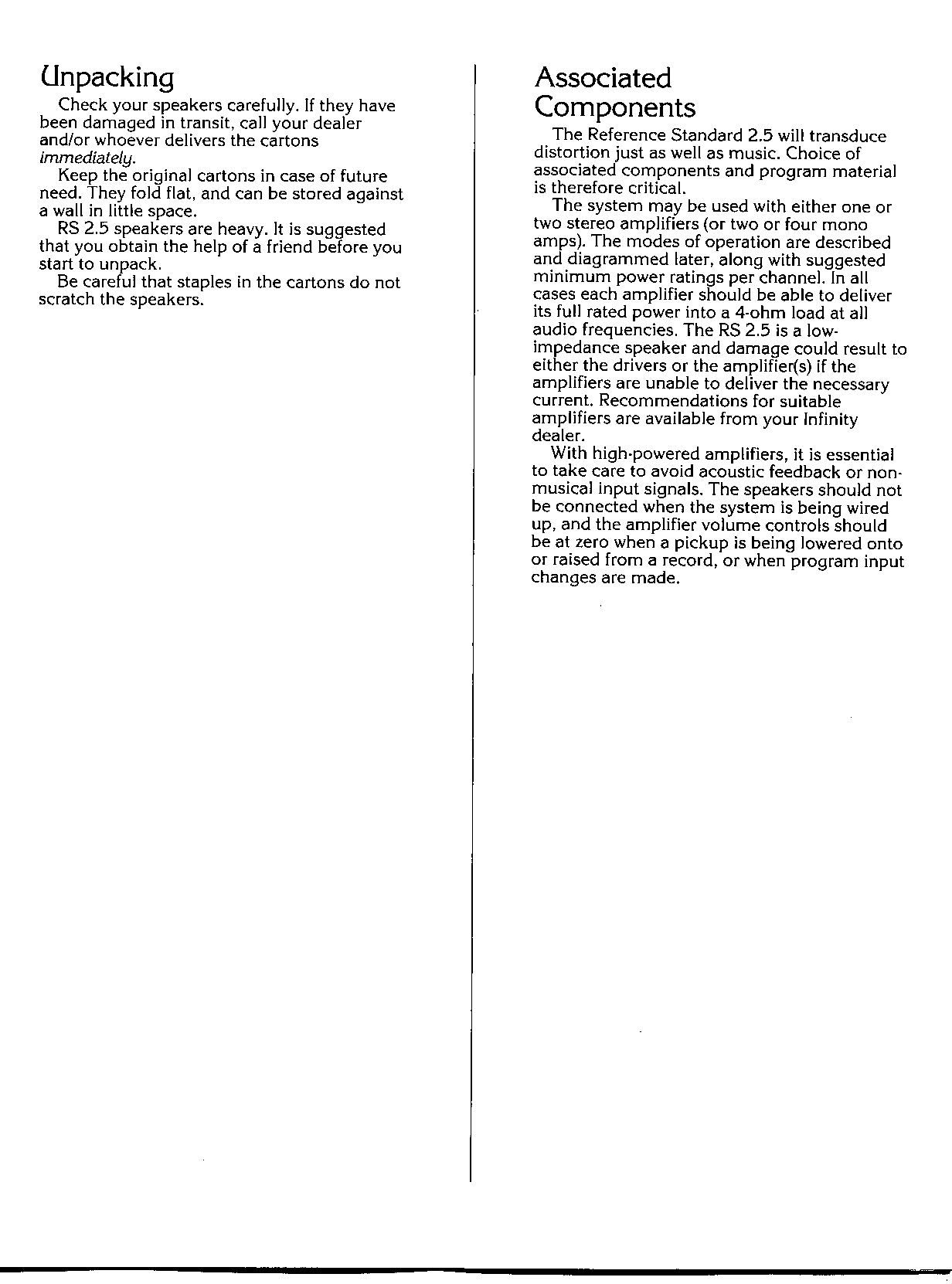

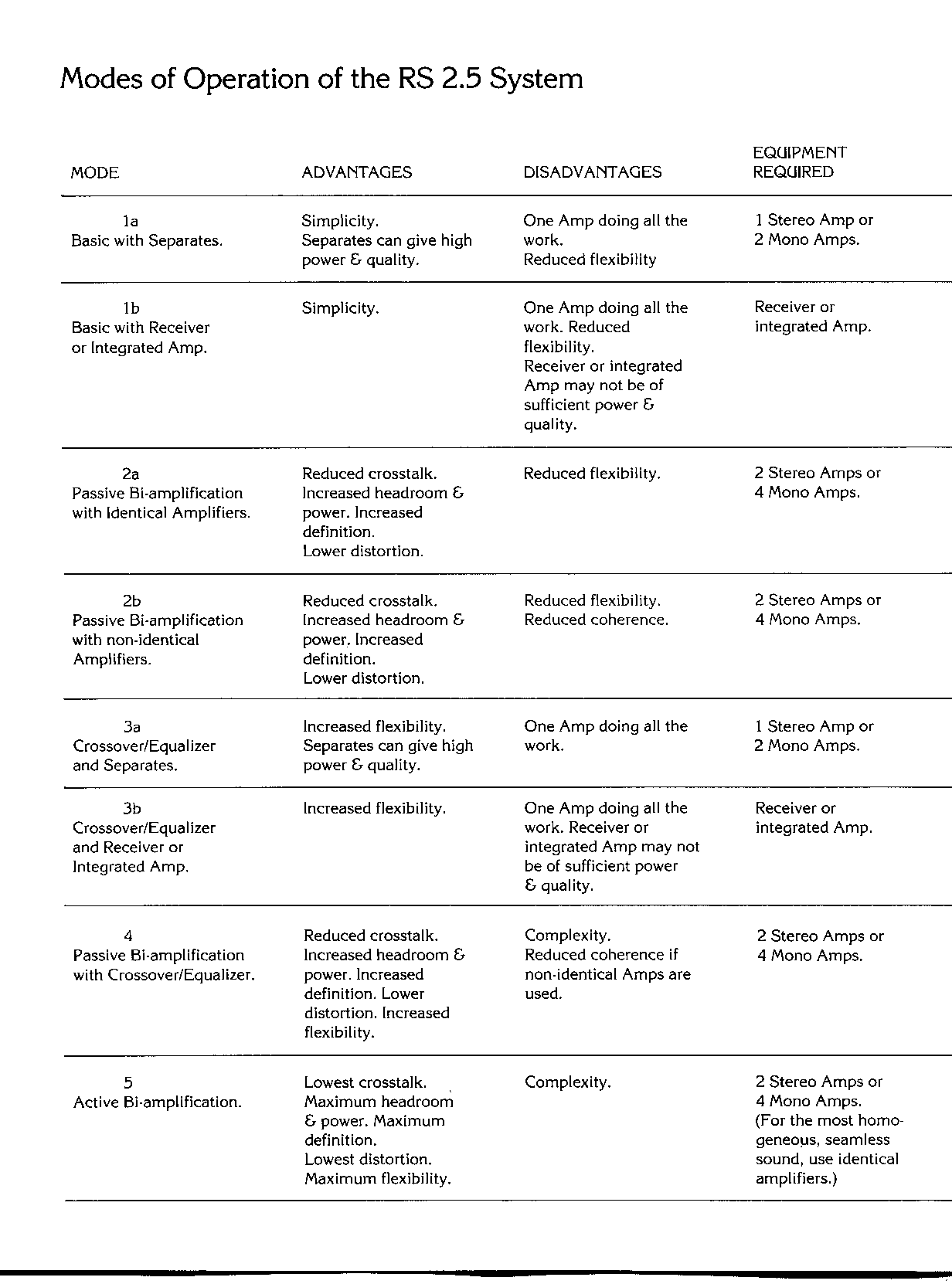

Click below for the manual.
page 1,
page 2,
page 3,
page 4,
page 5,
page 6,

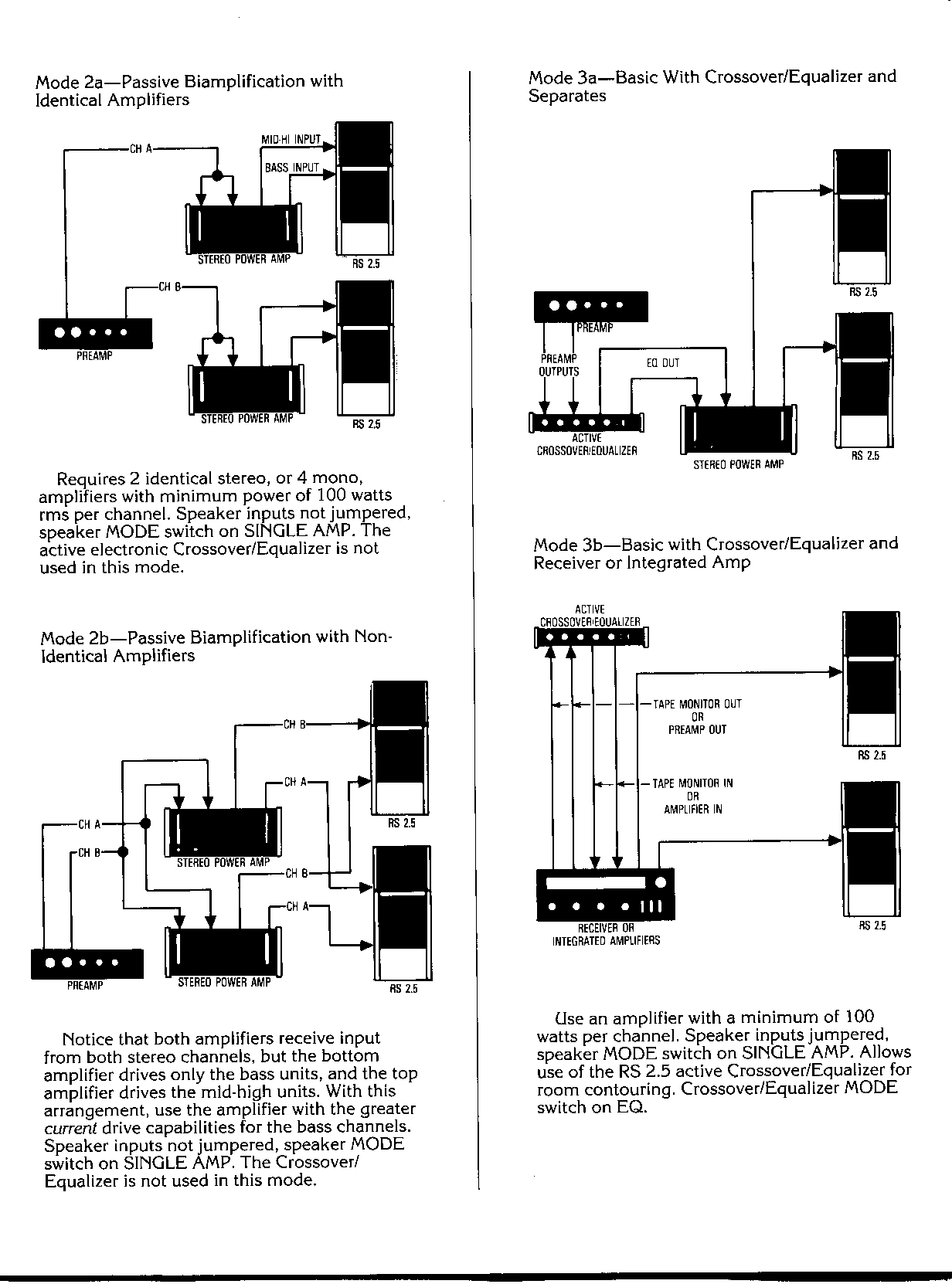

page 7,
page 8,
page 9,

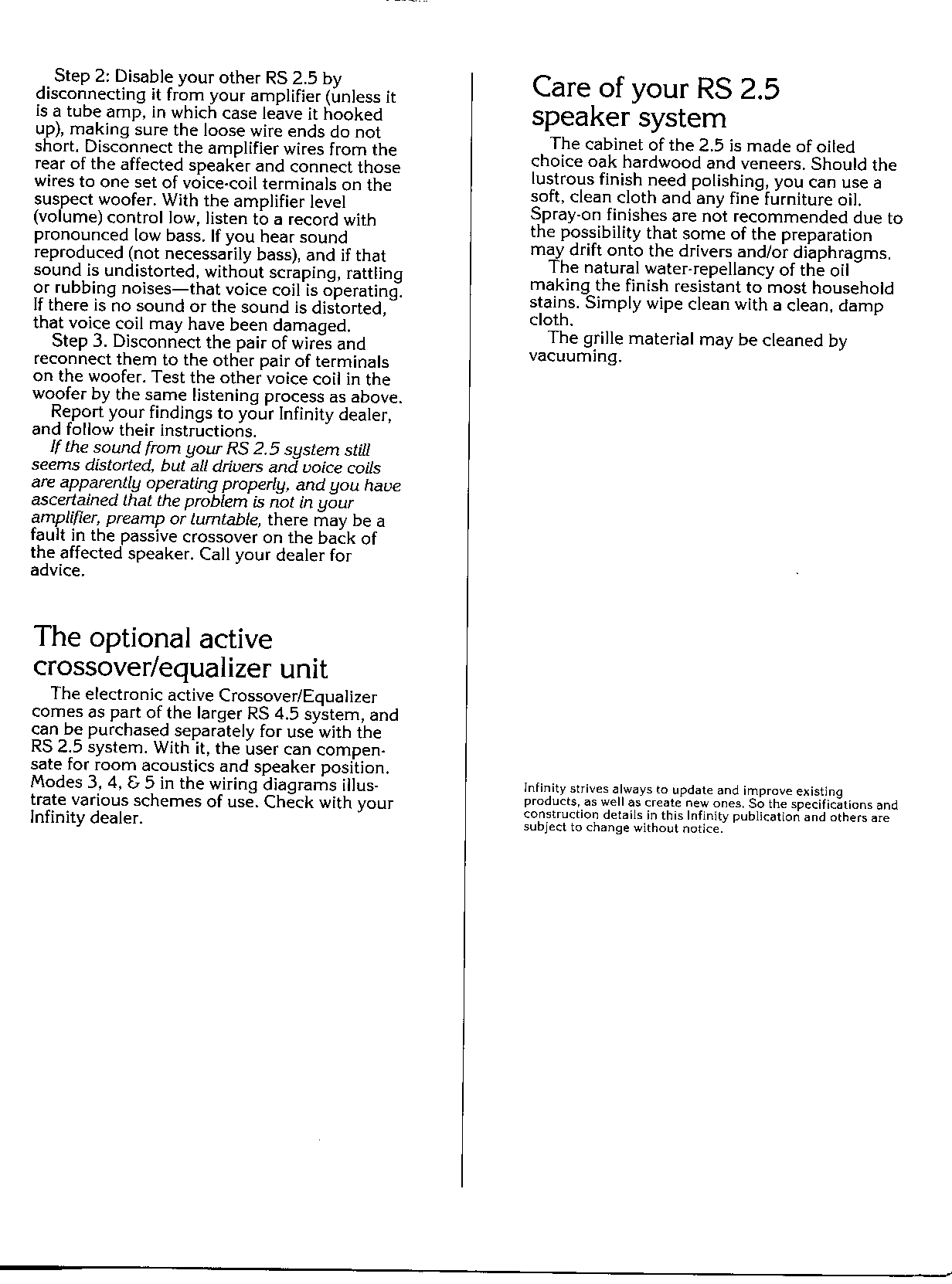

page 10,
page 11
You can view a brochure of the RS 2.5 here.
page 1,
page 2,
page 3
